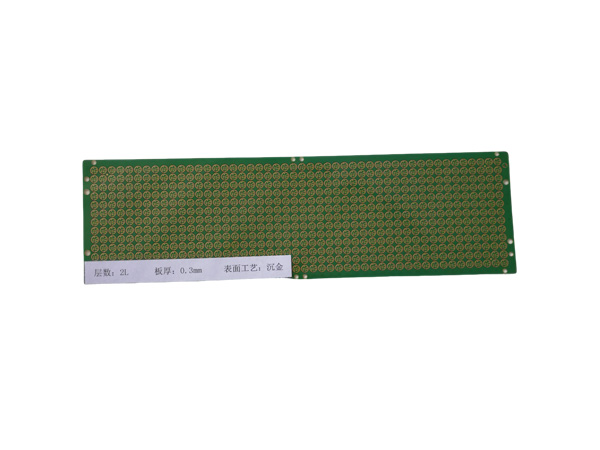

Ultrathin PCB is a type of circuit board specifically designed to meet the stringent requirements for space and weight in modern electronic devices. Its thickness is usually no more than 0.4mm, and some high-end products can be as thin as 0.05mm or even thinner. This characteristic makes it a key component for miniaturized electronic products, such as wearable devices, smartphones, medical implants, and so on.
Ultra-thin design
The thickness is only 1/2 to 1/10 of that of traditional PCBs, significantly reducing the size and weight of the equipment.
For example: A single-layer board can be as thin as 0.08mm, a double-layer board 0.13mm, and a four-layer board 0.15mm.
High flexibility
Supports bending and folding, suitable for innovative designs such as curved displays and foldable phones.
The use of flexible substrates (such as PI) enables it to withstand repeated bending without damage.
Outstanding performance
Thermal management: Optimized heat dissipation design to prevent overheating of the equipment.
Signal integrity: Reduced signal loss to enhance data transmission speed.
Material efficiency: Decreased usage of raw materials such as copper and base materials, in line with environmental protection trends.
High Frequency PCBs are specialized printed circuit boards designed to handle and transmit high-frequency signals, typically operating above 1 GHz, with some applications extending into the millimeter-wave band (30 GHz and beyond). These boards are engineered to maintain signal integrity and reliability during high-speed data transmission, making them indispensable in modern high-speed communication and electronic syste
High Frequency PCBs are specialized printed circuit boards designed to handle and transmit high-frequency signals, typically operating above 1 GHz, with some applications extending into the millimeter-wave band (30 GHz and beyond). These boards are engineered to maintain signal integrity and reliability during high-speed data transmission, making them indispensable in modern high-speed communication and electronic systems.
Product name: High frequency PCB
Material: Roger RO4350B + Shengyi S1000 FR4
Layers: 4layers
Copper: 1oz
Thickness: 1.20mm
Surface finishing: Immersion Gold 2U"
Soldermask: Taiyo Green soldermask
Application: communication device
